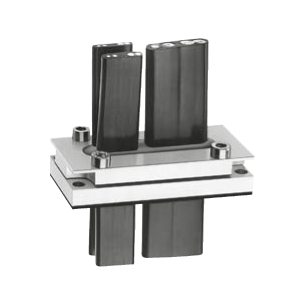

UNIVERSAL KABELVERSCHRAUBUNGEN für Flach- und Rundkabel - Aluminium - 100139
Material: Messing, vernickelt
Dichteinsatz : CR
Temperaturbereich : -20 ° C bis 80 ° C
Schutzart: IP 54
UNIVERSAL CABLE GLANDS
Universally applicable for one or several flat and/or round cables. Solid rubber insert can be adapted as to suit the respective cable dimension (round cable + 1 mm).
L x W x H mm |
Cable mm |
Rubber insert |
---|---|---|
95 x 45 x 35 | 70 x 12 | three-piece |
95 x 45 x 35 | 49 x 4.5 | one-piece |
95 x 45 x 35 | 63 x 12 | one-piece |
95 x 45 x 35 | 2 x 49 x 4.5 | 2 slots |
95 x 45 x 35 | max. 70 x 12 | solid rubber |
