Flexible hose catalog

Material: brass, nickel-plated
Universal sealing ring: NBR / CR
Temperature range: -20 °C to 80 °C
Protection type: IP 54

Thread M16x1.5 to M63x1.5 for cables from Ø2mm to Ø51mm.

Material: brass, nickel-plated
Universal sealing ring: NBR / CR
Temperature range: -20 °C to 80 °C
Protection type: IP 54

Thread M16x1.5 to M63x1.5 for cables from Ø2mm to Ø51mm.

Material: brass, nickel-plated
Sealing insert: TPE
O-ring: NBR
Temperature range: -40 °C to 130 °C
Protection type: IP 68

Material: brass, nickel-plated
Sealing insert: TPE
O-ring: NBR
Strain relief: acc. to EN 50262, version A
Temperature range: -40 °C to 130 °C
Protection type: IP 68

Material: brass, nickel-plated
Sealing insert: PVC
O-ring: NBR
Temperature range: -20 °C to 100°C
Protection type: IP 65

Thread Pg 9 to Pg 48 for cables from Ø1.2mm to Ø18mm.

Material: brass, nickel-plated
Sealing insert: TPE
O-ring: NBR
Temperature range: -40 °C to 130 °C
Protection type: IP 65

Thread M16x1.5 to M63x1.5 for cables from Ø1.2mm to Ø18mm.

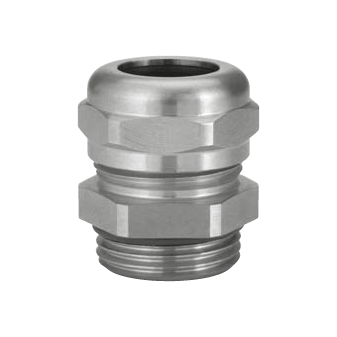

Material: Stainless steel CrNiMo (DIN 1.4571)
Sealing insert: TPE-V
O-ring: NBR
Strain relief: acc. to EN 50262, version A
Temperature range: -40 °C to 135 °C
Protection type: IP 68

Thread M12x1.5 to M63x1.5 for cables from Ø4mm to Ø44mm.

Material: brass, nickel-plated
Sealing insert: TPE
O-ring: NBR
Strain relief: acc. to EN 50262, version A
Temperature range: -40 °C to 130 °C
Protection type: IP 68

Thread M4x0.7 to M120x2 for cables from Ø0.9mm to Ø110mm.

Cable Glands
Material: brass, nickel-plated
Sealing insert: TPE
O-ring: NBR
Strain relief: acc. to EN 50262, version A
Temperature range: -40°C to 100°C
Protection type: IP 68/IP69K

Thread Pg 7 to Pg 48 for cables from Ø3.5mm to Ø49mm.

Cable Glands
Material: brass, nickel-plated
Sealing insert: TPE
O-ring: NBR
Strain relief: acc. to EN 50262, version A
Temperature range: -40°C to 100°C
Protection type: IP 68/IP69K

SEV approved acc. to EN 50262

Thread M6x1 to M115x3 for cables from Ø2mm to Ø95mm.

Cable Glands
Material: brass, nickel-plated
Sealing insert: TPE
O-ring: NBR
Strain relief: acc. to EN 50262, version A
Temperature range: -40°C to 100°C
Protection type: IP 68/IP69K

Thread Pg 7 to Pg 48 for cables from Ø3.5mm to Ø49mm.

Cable glands
Material: Stainless steel CrNi (DIN 1.4305)
Sealing insert: FPM
O-ring: FPM
Strain relief: acc. to EN 50262, version A*
Temperature range: -40°C to 200°C
Protection type: IP 68 / IP 69 K

SEV approved acc. to EN 50262

Thread Pg 7 to Pg 48 for cables from Ø3.5mm to Ø49mm.

Cable glands
Material: Stainless steel CrNi (DIN 1.4305)
Sealing insert: FPM
O-ring: FPM
Strain relief: acc. to EN 50262, version A*
Temperature range: -40°C to 200°C
Protection type: IP 68 / IP 69 K

SEV approved acc. to EN 50262

Thread M8x1.25 to M63x1.5 for cables from Ø2.5mm to Ø52mm.

Cable glands
Material: Stainless steel CrNi (DIN 1.4305)
Sealing insert: TPE
O-ring: NBR
Strain relief: acc. to EN 50262, version A*
Temperature range: -40°C to 100°C
Protection type: IP 68 / IP 69 K

SEV approved acc. to EN 50262

Thread Pg 7 to Pg 48 for cables from Ø3.5mm to Ø49mm.

Cable glands
Material: Stainless steel CrNi (DIN 1.4305)
Sealing insert: TPE
O-ring: NBR
Strain relief: acc. to EN 50262, version A*
Temperature range: -40°C to 100°C
Protection type: IP 68 / IP 69 K

SEV approved acc. to EN 50262

Thread M8x1.25 to M63x1.5 for cables from Ø2.5mm to Ø52mm.

Cable Glands
Material: brass, nickel-plated
Sealing insert: TPE
O-ring: NBR
Strain relief: acc. to EN 50262, version A
Temperature range: -40°C to 100°C
Protection type: IP 68/IP69K

SEV approved acc. to EN 50262

Thread M6x1 to M115x3 for cables from Ø2mm to Ø95mm.

From M75 only in stainless steel AISI303

PVC coated, highly flexible metal protection conduit. Robust and liquid tight. Square locked metal profile.
IP68 acc. to EN/IEC 60529.
Temp.: approx. -20 °C to +70 °C (peak +80 °C)
Colour: black

Electro-coupled stainless steel pipes.
Protection against electromagnetic interference over a wide frequency range.
EN 10088-1 = AISI 304 (X5CrNi1810) or AISI 316L (X2CrNiMo17-12-2)
Uniformly brushed stainless steel with a good surface finishing.
Cold bending, even with limited radius (3 times Ø)
Standards: EN 61386-1 (5545), EN 61386-21, EN 60423
Protection class IP66 / IP67 (EN 60529)
Compression 4000N - Shock 20J
Tensile strenght 1000N - Suspended load 450N
Corrosion resistance = 4 (high)
EMC shielding = Level 1
Electrical continuity guaranteed

Electro-coupled steel pipes.
Protection against electromagnetic interference over a wide frequency range.
Cold bending, even with limited radius (3 times Ø)
Standards: EN 61386-1 (5545), EN 61386-21, EN 60423
Protection class IP66 / IP67 (EN 60529)
Compression 4000 N - Shock 20 J
Tensile strenght 1000 N - Suspended load 450 N
Corrosion resistance = 2 (medium)
Guaranteed electrical continuity
