Flexible hose catalog

Rubber expansion joint for axial, lateral and angular movements, with union couplings
Choice between different elastomers: EPDM, NEOPRENE, NITRILE

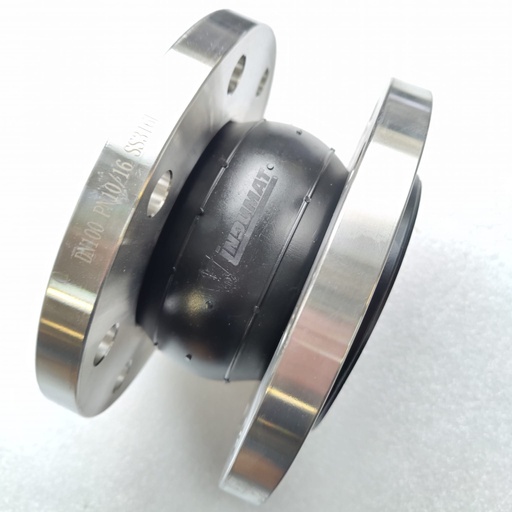

Rubber expansion joint for axial, lateral and angular movements, with loose flanges
Choice between different elastomers: EPDM, NEOPRENE, NITRILE, HYPALON

Light, very flexible suction hose with small bending radius and Hypalon® coated polyester fabric wall. Suitable for air conditioning, vantilation and heating systems, vehicle and engine construction and extraction of corrosive media.

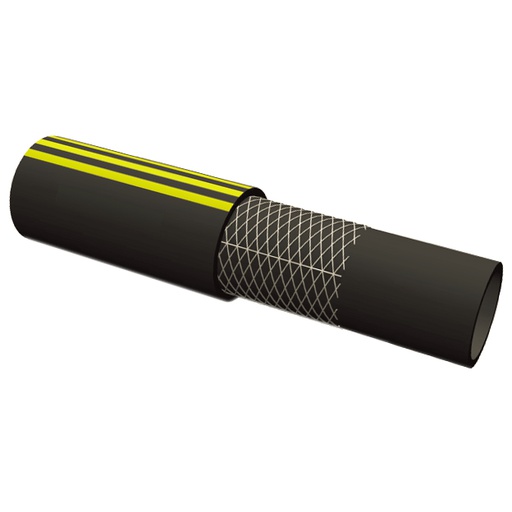

Versatile professional reinforced EPDM water hose for use in industry, construction, ...

Temperature: -20°C to +100°C
Operating pressure up to 15 bar, burst pressure of 45 bar
Packing: 40m roll

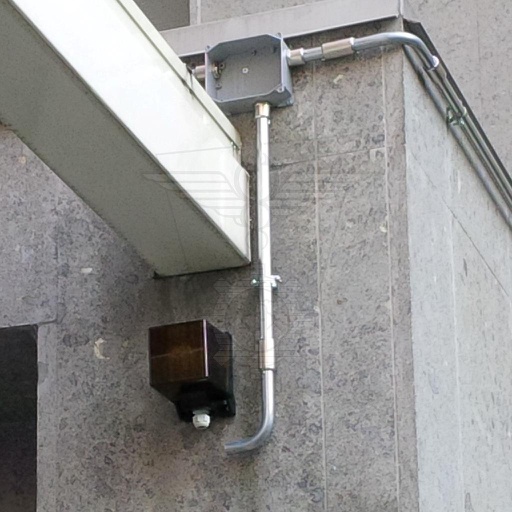

Electro-coupled stainless steel pipes.
Protection against electromagnetic interference over a wide frequency range.
EN 10088-1 = AISI 304 (X5CrNi1810) or AISI 316L (X2CrNiMo17-12-2)
Uniformly brushed stainless steel with a good surface finishing.
Cold bending, even with limited radius (3 times Ø)
Standards: EN 61386-1 (5545), EN 61386-21, EN 60423
Protection class IP66 / IP67 (EN 60529)
Compression 4000N - Shock 20J
Tensile strenght 1000N - Suspended load 450N
Corrosion resistance = 4 (high)
EMC shielding = Level 1
Electrical continuity guaranteed

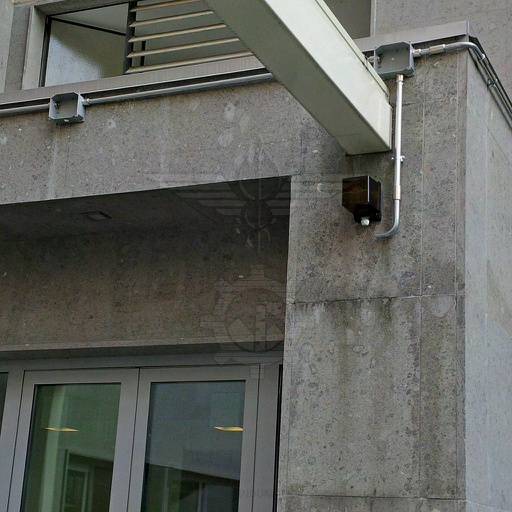

Electro-coupled steel pipes.
Protection against electromagnetic interference over a wide frequency range.
Cold bending, even with limited radius (3 times Ø)
Standards: EN 61386-1 (5545), EN 61386-21, EN 60423
Protection class IP66 / IP67 (EN 60529)
Compression 4000 N - Shock 20 J
Tensile strenght 1000 N - Suspended load 450 N
Corrosion resistance = 2 (medium)
Guaranteed electrical continuity

Characteristics:
Junction boxes made of aluminium alloy with epoxy resin finish and AISI 304 stainless steel screws.
Temperature range: -25°C until +90°C
Properties: Electrical continuity

Standards compliance:
CEI EN 60670 + CEI 23-48
EN 60529: IP66/67
EN 50102, Rating: IK07
Alloy: EN AB 46100 in conformity with EN 1676

Material: Polyamide PA 6
Color: Grey
Protection degree: IP68
Temp.: -40 °C to +120 °C, short term +150 °C
Flame retardant HB (UL94)
ROHS

Material: Polyamide PA 6
Color: black (RAL 9005) UV resistant
Protection degree: IP68
Temp.: -40 °C to +120 °C, short term +150 °C
Flame retardant HB (UL94)
ROHS

Material: Polyamide PA 6
Color: grey (RAL 7037)
Protection degree: IP68
Temp.: -40 °C to +115 °C, short term +150 °C
Flame retardant V0 (UL94), according to FMVSS302. Self-extinguishing, Type B
Static radius: ± 20mm - Dynamic radius: ± 45mm
ROHS
Railway certificate for France and Germany

Material: Polyamide PA 6
Color: black (RAL 9005) UV resistant
Protection degree: IP68
Temp.: -40 °C to +115 °C, short term +150 °C
Flame retardant V0 (UL94), according to FMVSS302. Self-extinguishing, Type B
ROHS
Railway certificate for France and Germany

Suction and Discharge Hose - Material: PE-EVA - Internal Diameter DN25 up to DN63 - Temp: -25°C to 60°C

Suction and Discharge Hose - Material: PE-EVA - Internal Diameter DN25 up to DN63 - Temp: -25°C to 60°C

Suction and Discharge Hose - Material: PE-EVA - Internal Diameter DN25 up to DN63 - Temp: -25°C to 60°C

Suction and Discharge Hose - Material: PE-EVA - Internal Diameter DN25 up to DN63 - Temp: -25°C to 60°C

Plumbing & heater flexible hoses, all lengths on request

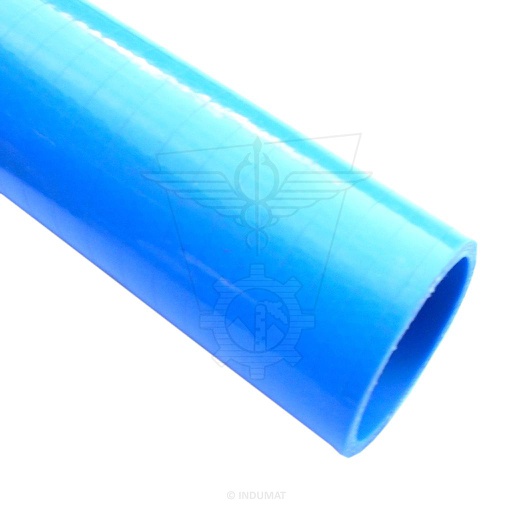

Completely oxygen-tight, silicone pressure hose. Suitable for use in cooling and
heating systems and the chemical and printing industry.

Completely oxygen-tight, silicone pressure hose. Suitable for use in cooling and
heating systems and the chemical and printing industry.

Completely oxygen-tight, silicone pressure hose. Suitable for use in cooling and
heating systems and the chemical and printing industry.

Completely oxygen-tight, silicone pressure hose. Suitable for use in cooling and
heating systems and the chemical and printing industry.
