Flexible hose catalog

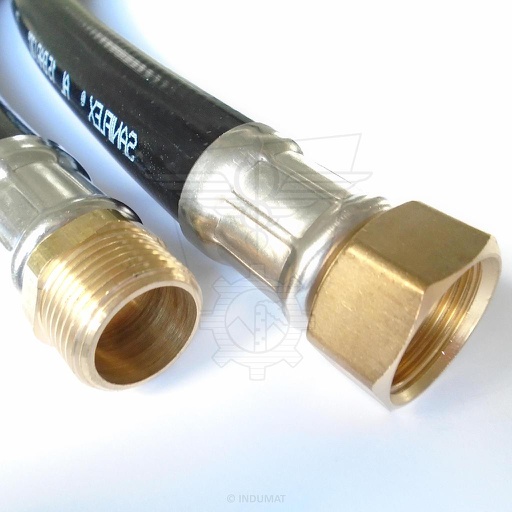

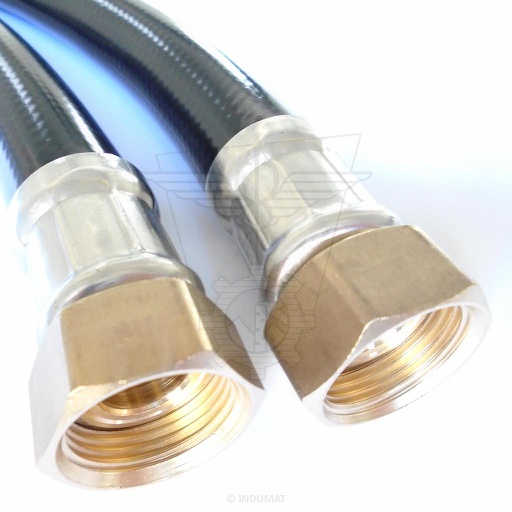

Flexible hose Saniflex-AL for the connection of water meters, water softeners and pumps.

Electrically conductive PE film hose Ro ≤ 10^6 Ω for air intake and transport.
Made of polyethylene (PE) fibre with a PE coating on both sides.
Set with a galvanized steel spiral band.
Very flexible, lightweight and highly compressible (1:6).
Surface resistance Ro ≤ 10^4 Ω
Temperatures from -20 °C to +70 °C.
Suitable for the extraction of chemical vapours.

Food grade flexible hose made of transparent PVC reinforced with a textile braid.
Operating pressure at 20°C = 15 bar < 35 mm int. / 12 bar < 32 mm int. / 10 bar < 40 mm int. / 8 bar < 50 mm int.
Tolerances from +/- 0.2 mm to +/- 0.5 mm depending on the diameter.
50 meter roll

Polycarbonate switch boxes.
Specifications:
- Housing with closing screws
- Grey or transparent cover
- Protection class IP68 and impact resistance IK08 PC
- Temperature: -40°C to +85°C

Robust and liquid tight.
IP68 acc. to EN/IEC 60529
Temp.: approx. -20°C to +70°C (peak +80°C)
Colour: grey

Groundwater sampling flexible hose in polyethylene (LD-PE).
- Detection of soil pollution
- Determination of the level of contamination
Available in different diameters.

Technical suction hose connection system / Abrasion resistant suction PU hose / Food version also available

Material: Polyamide PA 12
Color: grey
Protection degree: IP68
Temp.: -50 °C to +100 °C, short term +150 °C
Flame retardant V2 (UL94), according to FMVSS302. Self-extinguishing.
Highly flexible
ROHS

Material: Polyamide PA 12
Color: black (RAL 9005) UV resistant
Protection degree: IP68
Temp.: -50 °C to +100 °C, short term +150 °C
Flame retardant V2 (UL94), according to FMVSS302. Self-extinguishing.
Highly flexible
ROHS

Robust and liquid tight.
IP68 acc. to EN/IEC 60529
Temp.: approx. -40°C to +90°C (peak +125°C)
Colour: blue

Light, very flexible suction hose in Teflon® coated glass fabric, with stainless steel spiral. Suitable for the paint, paper, pharmaceutical and chemical industries and the extraction of corrosive media, solvents and paint mist.

Light, very flexible suction and blower hose in PVC coated polyester fabric. Highly compressible to about 1:8. Suitable for danger zones which require electro-conductivity acc. to TRBS, the suction and conveyance of aggressive media, explosive gases and fumes and the supply and extraction of air in explosion-protected Areas.

Light, very flexible suction hose in Teflon® coated glass fabric, with galvanised steel spiral. Suitable for the paint, paper, pharmaceutical and chemical industries and the extraction of corrosive media, solvents and paint mist.

PTFE flexible hose reinforced with Stainless steel braid

Working Pressure (WP) at 23°C: 4 Bar
Security coefficient at 20°C: 3 times the WP
Vacuum: 5
Temperature: -10°C to +60°C

Plasticized PVC hose reinforced by a rigid PVC spiral (anti shock). Smooth inner layer in transparent crystal. Easy to use, light and flexible.
Temperature range: -10 till 60°C
Applications: Suction and discharge hose for e.g. agriculture, pumps

Plasticized super elastic PVC hose reinforced by a rigid PVC spiral (anti shock). Smooth inner layer. Easy to use even at low temperatures
Temperature range: -20 till 60°C
Applications: Suction and discharge for used water, especially as equipment for trucks.

Flexible hose in opaline PVC for suction and discharge
Plasticised PVC hose reinforced by a rigid PVC spiral
Temperature: -10°C to +60°C
Smooth inner layer in transparent crystal with food quality

PU suction hose for large and small street-cleaners, for leaf and grass suction devices.
Highly abrasion, vacuum and microbe-resistant.

Material: Polyamide PA 6
Color: Grey
Protection degree: IP68
Temp.: -40 °C to +120 °C, short term +150 °C
Flame retardant HB (UL94)
ROHS
